Fiberglass Duct Panel

Glass Fiber Composite Air Duct

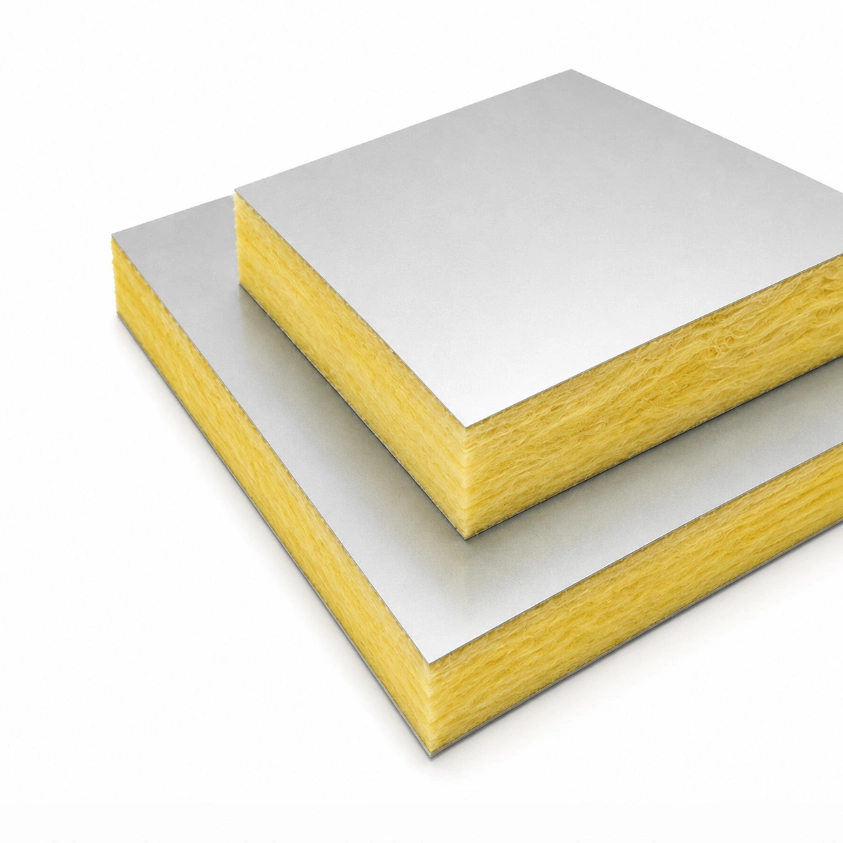

Glass fiber composite air duct is made of non-combustible glass wool board as the core material, compounded with various facing materials on the surface using high-performance adhesives. This product is widely used in central air conditioning ventilation systems with high requirements for fire prevention, sound insulation and antibacterial properties.

Features

Glass Fiber Composite Air Duct – Product Features

• High Fire Resistance: Both the core material and surface layer are laminated with high-strength high-performance adhesives, resulting in excellent fire performance. Therefore, it is widely used in hospitals, subways, factories, etc.
• Noise Reduction & Sound Absorption: The core material of the glass fiber duct is made of porous ultra-fine glass wool board, which acts as a tubular silencer. Especially with very low secondary noise, it can reduce or eliminate the need for bulky silencers, effectively lowering the internal environmental noise of the project.
• Thermal Insulation: The product has a very low thermal conductivity coefficient. The outer layer can be aluminum foil or color steel plate with strong reflective ability. Tests show it can reduce the heat transfer coefficient of the duct by about 25%.
• Pressure and Stress Resistance: Glass fiber composite air ducts have good elasticity and fatigue resistance, effectively relieving the stress generated during system operation.
• Energy Saving & Cost-Effective: Low cost, simple construction, lightweight and quick installation.
• Wide Range of Applications: Suitable for subways, high-speed railway stations, hospitals, office buildings, factories and other places.

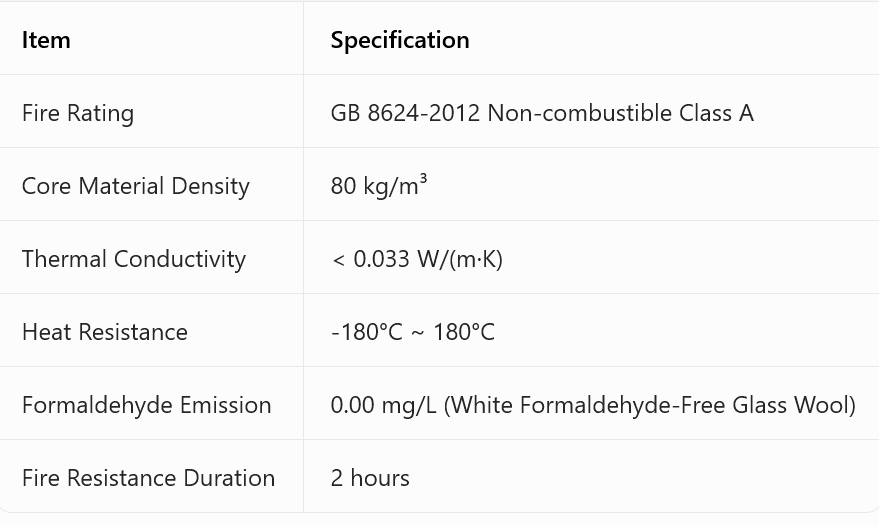

Product Parameters
